CMiC Field - CSI Code Maintenance

Standard Treeview path: CMiC Field > File Maintenance > Local Tables > CSI Code Maintenance

The CSI codes defined here are used in the Spec Section and Spec Sub-Section fields found in CMiC Field - Submittals and CMiC Field - Submittal Packages. The ability to use CSI codes in this way is determined by the selections made in the Spec Section LOV Options and Spec Sub-Section LOV Options fields found in the CMiC Field - Project System Options - Submittal - Tab tab of Project System Options.

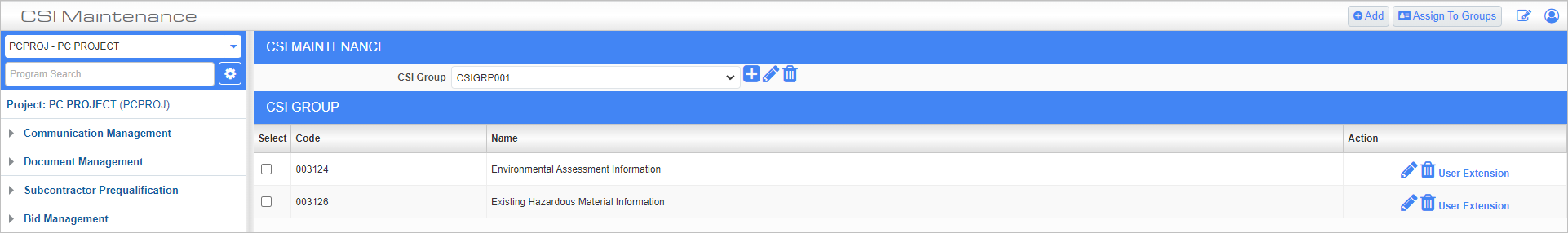

CSI Maintenance

Select the CSI Group code from the CSI Group field. Press the Plus icon to add a new Group code, press the Pencil icon to edit the name of the currently selected Group code, or press the Trash icon to delete the currently selected Group code.

CSI Group

This section contains the CSI Codes assigned to the selected Group code. Group codes can be assigned as many CSI codes as required.

Press the [Add] button to create a new CSI code and assign it to a Group code. Select codes from this section with the 'Select' box and press the [Assign to Groups] button to assign the selected codes to other groups.

Press the Pencil icon to edit a code, or press the Trash icon to delete that code.

User extensions can be associated with a CSI Code by pressing the User Extension link.
