Free Form Fields

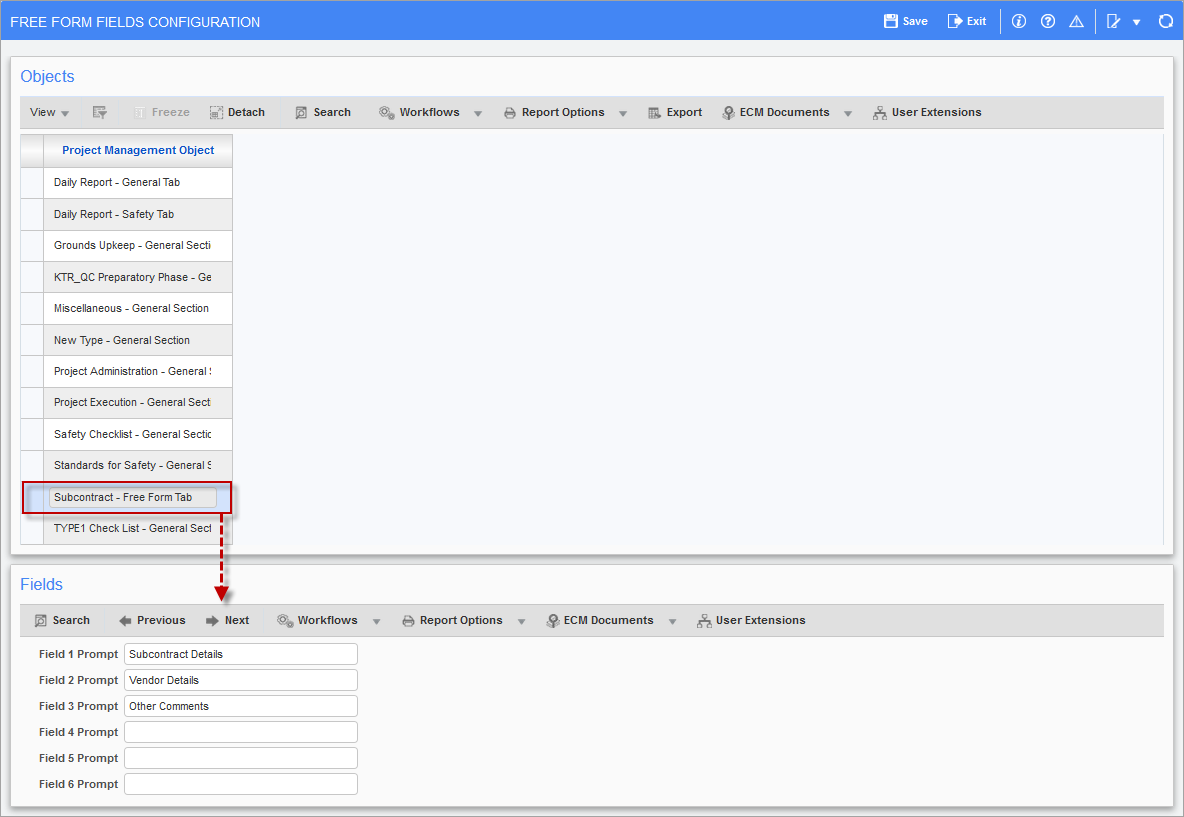

Pgm: PMFFSET – Free Form Fields Configuration; standard Treeview path: System > User Extensions > Free Form Fields

This screen is used to set up user-defined fields for Free Form tabs in PM objects in CMiC Field. For example, the Subcontract Entry screen’s Free Form tab has user-defined fields to enter additional subcontract details.

NOTE: The Free Form tab will be disabled in CMiC Field until its user-defined fields are set up using the Free Form Fields screen.

The screenshot below shows an example of a PM object (Subcontract Free Form tab) displaying the user-defined fields entered in the screenshot above in CMiC Field.

Example of Subcontract Entry screen Free Form tab in CMiC Field showing defined classifiers
