Define Roles

Sample of the Define Roles screen

Pgm: ROLES –Roles; standard Treeview path: System > Security > Roles > Define Roles

Role, Name

Enter a code and name for the role being defined. CMiC comes with three designated system-defined roles: ADMIN, SECURITY, and TRANSACTN.

Insert, Update, Delete, Report User, Report Administrator

Each new role will automatically allow for the insert, update and deletion of data. To create a role with limited access to data, uncheck the required boxes.

Note The Report User and Report Administrator checkbox options are related to accessing and administration of Jasper Reports.

System Privileges

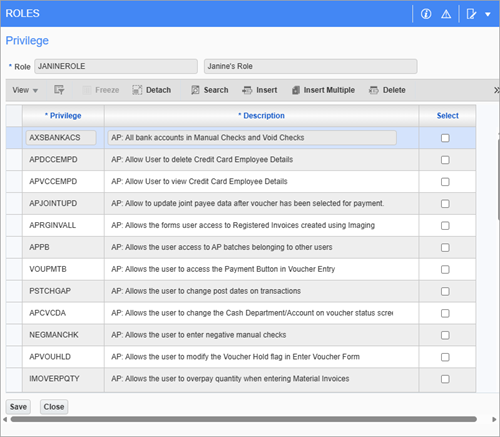

Sample of the System Privilege pop-up window

Pop-up window launched from the [System Privileges] button on the Roles screen (standard Treeview path: System > Security > Roles > Define Roles)

Click the System Privileges button to launch a pop-up window where the user can indicate the access rights to specific options within the system as they apply to the role being defined.

Check the box beside the option to which access is to be granted for the role being defined. The system default does not check any of these privileges when setting up a new role, so it is incumbent upon the user to check these options if they are desired.

Once a set of privileges have been checked for a role, the system will ask the user if they want to “Update the Users?” on this role. If [Yes] is selected, the system will update the users with the privileges assigned to the role.

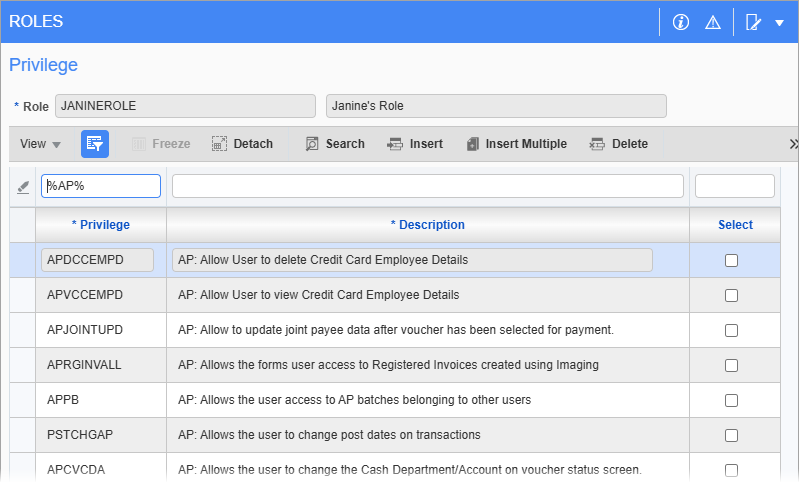

Click on the Query By Example icon in the Block Toolbar to search for application specific system privileges, as shown in the screenshot below.

Example of using Query By Example to search for application specific system privileges

The system allows for the specification of the following privileges:

Privilege	Description
AXSBANKACS	AP: All bank accounts in Manual Checks and Void Checks
APJOINTUPD	AP: Allow to update joint payee data after voucher has been selected for payment
APRGINVALL	AP: Allows the forms user access to Registered Invoices created using Imaging
APPB	AP: Allows the user access to AP batches belonging to other users
APUPDEFCHQ	AP: Allows the user to update EFT cheque sequence number in AP control file.
VOUPMTB	AP: Allows the user to access the Payment Button in Voucher Entry
PSTCHGAP	AP: Allows the user to change post dates on transactions
APCVCDA	AP: Allows the user to change the Cash Department/Account on voucher status screen
NEGMANCHK	AP: Allows the user to enter negative manual checks
APVOUDISC	AP: Allows the user to update discount amount on Adjust Voucher Status screen
APVOUHLD	AP: Allows the user to modify the Voucher Hold flag in Enter Voucher Form
IMOVERPQTY	AP: Allows the user to overpay quantity when entering Material Invoices
IMOVERRIDE	AP: Allows the user to override Production Quantity when entering Invoices
APBCHAMT	AP: Allows the user to post a batch where the control amount does not equal the batch amount
UNPRECHK	AP: Allows the user to unprepare already printed checks
APJOINTPAY	AP: For partially paid voucher, allow total joint payee amount to exceed current outstanding amount
VOUST	AP: Set Voucher Status to Express
APPOSTCUR	AP: Allows current user to post their own AP batches
ARJBINMEM	AR: Allows The User To Apply AR Memos to JB Bill Invoices
ARPB	AR: Allows the user access to AR batches belonging to other users
ARJBINACPH	AR: Allows the user to enter AR and JB transactions to Inactive Phase/Categories
ARBCHAMT	AR: Allows the user to post a batch where the control amount does not equal the batch amount
ARJBINPHPS	AR: Allows the user to post billings to inactive phases when AR control setting is off
ARPOSTUPD	AR: Allows the user to update due date and description on posted invoices
ARCRSUP	AR: Privilege designates the user as an AR Front Office Receipt Supervisor
ARVOIDRECN	AR: Allows user to void reconciled checks
ABOUTUSERL	Allow user to see "User List" button when accessing Help->About
SYSDATASHT	Allow the user to load the Data Sheet screen
SCEBAPST	Allows the user to post the subcontract even if exceeds the budget
PMCMPINF	Allows user to change overall participation information
JCAECCAT	JC: Allows user to override the category for AP/SC/AR vouchers. Note This system privilege allows user to override the category for AP vouchers and SC commitments including any PCIs linked to the vendor/subcontract or any subcontract change orders that are then used to create RFPs (not SC vouchers).
CIPB	CI: Allows the user access to CI batches belonging to other users
PSTCHGCI	CI: Allows the user to change post dates on transactions
CMPB	CM: Allows the user access to CM batches belonging to other users
PSTCHGCM	CM: Allows the user to change post dates on change orders
AIASKANLTC	CMIC AI: Allows the user to use Ask Analytics feature
BILOGCRT	CMIC BI: Allows the user to create user-defined logs
BICFDRFLTR	CMIC BI: Allows the user to modify folder filters in BI Catalog Builder
BICTLGBLDR	CMIC BI: Allows the user to access BI Catalog Builder
BICALCFLD	CMIC BI: Allows the user to create calculated fields and modify their calculation
BIDBRDEDIT	CMIC BI: Allows the user to create, edit and delete Dashboards
BISECMNG	CMIC BI: Allows the user to modify security
BIUDFOLDER	CMIC BI: Allows the user to create User-Defined Folders
BIUDFSETUP	CMIC BI: Allows the user to modify setup for User Defined Fields definitions
PYADMMSTCD	E-TIME: Administer Master Access Codes
ETACCESSCD	E-TIME: Allows the user to define Access Codes
EMPB	EM: Allows the user access to EM batches belonging to other users
EMACTRATE	EM: Allows the user to activate or inactivate equipment rates
GEIMPUSRIV	EM: Allows the user to see and edit the imported GE Fleet data by other users
EMAUREPLVL	EM: Allows the user to update Replacement Value for Equipment
FAPB	FA: Allows the user access to FA batches belonging to other users
FACHGACVAL	FA: Allows the user to adjust the Asset Acquisition Value
GLVINADPT	GL: Allow User To View/Update Inactive Departments
GLREOPENYR	GL: Allow to Reopen Previous Year
GLPB	GL: Allows the user access to GL batches belonging to other users
GLRECENT	GL: Allows the user access to GL recurring entries belonging to other users
SUBLGACC	GL: Allows the user to post to GL Subledger Control Accounts
GLPOSTCUR	GL: Allows current user to post their own GL batches
HCMAPPLIC	HCM: Allows Applicant Management module access by employee security
HCMCIOACS	HCM: Allows users to access Clock In Out Application
HCMCOMPENS	HCM: Allows Compensation Management module access by employee security
HCMHIRING	HCM: Allows Hiring Requisitions module access by employee security
HCMPERFORM	HCM: Allows Performance Management module access by employee security
HCMTRAIN	HCM: Allows Training module access by employee security
HCMPYEMP	HCM: Allows employee access by employee security
HIRE	HR: Allows the user to hire an applicant
HRSSNSEC	HR: Allows the user to view SSN of the Employees.
HRASTRK	HR: Allows user to Track Assets (Personnel Asset Tracking) without Employee Security.
HRNCDNTDEL	HR: Allows user to delete an incident report
JBJCREFUPD	JB: Allow to update reference description on Cost Transaction screen when prepare billing
JBCONTEDIT	JB: Allows the User to change the Contract code in Job Setup Screen
JBPB	JB: Allows the user access to JB batches belonging to other users
PSTCHGJB	JB: Allows the user to change post dates on transactions
JBCONTBUDG	JB: Allows the user to override budget on the contract
JCCTRLJOB	JC: Allow control jobs to be created in the job maintenance screen
JCPYSECTOT	JC: Allows the User to See Un-Secure Totals in JC for Secure Pay Groups
JCPYUNBREV	JC: Allows the User to See Unbilled Revenue Amount in JC for Secure Pay Groups
JCPB	JC: Allows the user access to JC batches belonging to other users
JCWOJOBS	JC: Allows the user to access Work Order Jobs in JC
PSTCHGJC	JC: Allows the user to change post dates on transactions
JCPHSINS	JC: Allows the user to create a new Phase/Category on the fly
JCTPFOVERV	JC: Allows the user to override Earned Revenue Amount in Time Phased Forecast Screen
JCGLPER	JC: Allows the user to post transactions to a closed period
JCEXQRY	JC: Allows the user to see Employee Name in JC Executive Query
JCPYINFO	JC: Allows the user to see PY info in JC for Secure Pay Groups
JCIMPUSRFB	JC: Allows the user to see and edit the imported Foreign Budget by other users
JCUNOTECHG	JC: Allows user to change the Units Complete Transactions Notes
JCMUSRIFBH	JC: Allows user to see and edit the imported foreign batch data of other users
JCMUSRIPQC	JC: Allows user to see and edit the imported phase qty completion data of other users
JCLCS	JC: Limit Category Selection to a Single Category in Job Cost Transaction Entry Screen
JCELINE	JC: Restricts user to not enter E-line in Enter Cost Transactions
JCGLINE	JC: Restricts user to not enter G-line in Enter Cost Transactions
JCJLINE	JC: Restricts user to not enter J-line in Enter Cost Transactions
JCWLINE	JC: Restricts user to not enter W-line in Enter Cost Transactions
MSMRUPDPRC	MS: Allow override of Price on MS Material Receipt
MSLOCKPDTL	MS: Allows the user to lock and unlock a price list detail
MSPRICEOVR	MS: Allows the user to modify the unit price on ticket entry
MSIMPUSRSO	MS: Allows the user to see and edit the imported sales orders by other users
MSIMPUSRTK	MS: Allows the user to see and edit the imported tickets by other users
OMNOREQFLD	OM: Allow User to Bypass Conditionally Required Fields that are Set Up by Sales Stage
PMOWNEQUIP	PM: Access Own Equipment tab in the PM Daily Report form
PMSYSOPT	PM: Allows the user access to PM System Options
PMTRNQ	PM: Allows the user to access Transmittal Records belonging to other users
PMJOUROLAB	PM: Allows the user to access the Labor Tab within the Daily Journal
PMPROJQST	PM: Allows the user to access the Questionnaire Tab within the Project Maintenance
PMBIDCRT	PM: Allows the user to create a bid job from within Project Management
PMJOBCRT	PM: Allows the user to create a job from within Project Management
PMCRTVEN	PM: Allows the user to create a vendor from a BP on the fly
PMCMPINF	PM: Allows user to change overall participation information
PMMRALLJOB	PM: Allows user to create markup rules for ALL jobs
POUNRECINV	PO: Allow to unreceive invoiced items
PORCPTVAR	PO: Allows The User To Exceed Variance On Receipts
POPB	PO: Allows the user access to batches belonging to other users
POCL	PO: Allows the user to Open a Closed PO
APPOVAR	PO: Allows the user to exceed PO Variance when matching PO to Vouchers
POCOQTY	PO: Validate CO quantity against PO original quantity
PSTCHGPRM	PRM: Allows the user to change post dates on transactions
PYETIMEDIT	PY: Allows User to Change E-Time Data in Regular Timesheet
PYIMPTSRT	PY: Allow user to import payroll rates in timesheet import
PYIMPUSRBN	PY: Allows User to Validate/Edit PY Bonus - Adjustments Imported by other Users
PYIMPUSRTM	PY: Allows User to Validate/Edit PY Timesheet Imported by other Users
PYPB	PY: Allows the user access to batches belonging to other users
PYSUBPER	PY: Allows user to use sub-period field in payroll processing screen
PYSUBPPRVW	PY: Allows User to access Sub Period created by other Users
PYTM	PY: Allows the user access to timesheets belonging to other users
PSTCHGPY	PY: Allows the user to change post dates on transactions
PYRATE	PY: Allows the user to see pay rates in the HR Employee Query for Secure Paygroups
PYLBRTR	PY: Allows the user to transfer timesheet entries to actual timesheet table
PYPAYRATVW	PY: Allows the user to view pay rates in time sheet screen and reports
PYEDITINV	PY: Allows user to change system generated AP invoice code before creating and posting AP voucher
PYIMPUSREH	PY: Allows user to see and edit the imported employee history by other users
PYHISTADJC	PY: Allow user to change data on Employment History Adjustment screen
PSTCHGPYC	PYC: Allows the user to change post dates on transactions
RPFULLACCS	Resource Planning: Full Access
RPREADONLY	Resource Planning: Read Only Access
PSTCHGSC	SC: Allows the user to change post dates on transactions
SCPWP	SC: Allows the user to override the Pay When Paid flag in both AP and SC
SCEBAPST	SC: Allows the user to post the subcontract or RFP even if exceeds the subcontract budget
SCIMPUSRIC	SC: Allows the user to see and edit the imported Insurance Compliance by other users.
VENCOMPL	SC: Update Vendor Compliance
EDREMITADD	SD: Allow Edit of Secured Remit-To Address
SYSASGNFL	SD: Allow User to Launch Assignment Form For Form Letters.
SCHREPORT	SD: Allows the User to Schedule Reports
SESSKILL	SD: Allows the user permission to Kill Sessions
PRNTFILE	SD: Allows the user the to Print to File and Send to Spread Sheet
FIELDSEC	SD: Allows the user to apply field security
CHGDBPSW	SD: Allows the user to change database password of other users
SYSUSRCRE	SD: Allows the user to change preferences of other users
UNLCKBYOTH	SD: Allows the user to change the status of an attachment belonging to other users
ALERTDEF	SD: Allows the user to define alerts for all users and groups
HSTP	SD: Allows the user to define host program paths
RELEDIT	SD: Allows the user to define security on related screens
RPACTDEL	SD: Allows the user to delete Report Action Status records
EXPINVISBL	SD: Allows the user to export invisible columns to spreadsheet
ASSIGNROLE	SD: Allows the user to modify their own security access (excluding User Maintenance Form)
MRGPARTCON	SD: Allows the user to use the Partner and Contact Merge Utility
RPACTION	SD: Allows the user to view Report Action Status records for other users
SDCNTPHOTO	SD: Contact Photo - Upload and Remove
SDDADCSIBP	SD: Do Not Allow To Delete CSI Record On Business Partner
SDDADCLBP	SD: Do Not Allow To Delete Classification Record On Business Partner
SDDADMSBP	SD: Do Not Allow To Delete Market Sector Record On Business Partner
SDDADTERBP	SD: Do Not Allow To Delete Territory Record On Business Partner
SDDAICSIBP	SD: Do Not Allow To Insert CSI Record On Business Partner
SDDAICLBP	SD: Do Not Allow To Insert Classification Record On Business Partner
SDDAIMSBP	SD: Do Not Allow To Insert Market Sector Record On Business Partner
SDDAITERBP	SD: Do Not Allow To Insert Territory Record On Business Partner
SDDAUCSIBP	SD: Do Not Allow To Update CSI Record On Business Partner
SDDAUCLBP	SD: Do Not Allow To Update Classification Record On Business Partner
SDDAUMSBP	SD: Do Not Allow To Update Market Sector Record On Business Partner
SDDAUTERBP	SD: Do Not Allow To Update Territory Record On Business Partner
SHWINACCNT	SD: Show Inactive Contacts when System Option set to hide them
SSERESETEN	SSE: Allows user to reset enrollment in Benefit Enrollment screen
TENANTADM	SYS: Allow Access to Tenant Administration
SYSLICPOOL	SYS: Allows the user to edit License Pool data in User Maintenance Screen
SYSNOTES	SYS: Allows the user to modify notes created by other users
SYSCBPNAME	SYS: Allows user to change the Customer (Business Partner) Name
UPDCONTPK	SYS: Change Company/Partner On Contacts
SYSLOGFORM	SYS: Implement the Forms Security Within Syslogs Forms
UICONSNOTE	UI Console: Allows the user to Add/Edit Notes in Console Region
UICONSNOTH	UI Console: Allows the User to Edit/Remove Notes created by other Users
UIRPSVSTD	UI Report: Allow User To Save Changes To A Report Parameter Definition At The Standard Level
UIREXPORT	UI Runtime: Allows the user to Export data
UIRFTOVER	UI Runtime: Allows the user to Override Runtime Features - Impacts All Programs
UIRIMPORT	UI Runtime: Allows the user to Import data
UIRIMPALLU	UI Runtime: Allows the user to work with other users import data
UIRPROPOVR	UI Runtime: Allows the user to Override Property Default value - Impacts All Programs
WKF_ABORT	WKF: Allows the user to abort a workflow
PSTOVRRIDE	WKF: Allows the user to post a non-postable object

Configuration Privileges

Sample of the pop-up window launched from the [Configuration Privileges] button

Pop-up window launched from the [Configuration Privileges] button on the Roles screen (standard Treeview path: System > Security > Roles > Define Roles)

Click the Configuration Privileges button to launch a pop-up window where the user can indicate the access rights to specific options within the system as they apply to the role being defined (related to Console, ADFs and other items).

To add a configuration privilege, in the Privilege section of the pop-up window, click the privilege’s corresponding Select checkbox.

If customization levels are required for a configuration privilege, they can be defined in the lower half of the pop-up window. Select the configuration privilege in the Privilege section of the pop-up window, then click Insert in the Block Toolbar of the Configuration Privilege Levels section.

Configuration privileges are related to the ability of users to modify various UI Runtime related objects such as Console Layout, UI Logs, UI Treeviews, UI Program Builder, etc.

Note In order to finalize setup of Configuration Privileges, the final settings are required to be defined in the UI Runtime version of User Maintenance (standard Treeview path: System > Security > Users > User Maintenance – Configuration Privileges tab).

The system allows for the specification of the following configuration privileges:

Privilege	Description
CONSOLEDT	Console: Allow User To Edit Console Definition.
UIHTMLREG	Console: Allow to create/edit region with embedded HTML.
UIADDLEUDF	UI Lite Editor: Allow User To Add User Defined Fields Via Lite Editor.
UIRLITEEDT	UI Lite Editor: Allow User To Edit Program Definition Via Lite Editor.
UILOGCRT	UI Logs: Allow User To Create A New Log.
UILOGEDT	UI Logs: Allow User To Save Log Layout.
UIPRCBCRT	UI Process Builder: Allow User To Create/Edit Custom Process Definition.
UIPRGCRT	UI Program Builder: Allow User to Create/Edit Program Definition.
UIREPPRMMD	UI Report: Allow User to Modify Report Parameters Definition.
UITRVEDT	UI Treeview Builder: Allow User To Edit Treeview Definition.
