Added Drawing Sheet Thumbnail to Punch List Report

Why is it Useful?

CMiC has enhanced the Punch List Report by adding a new drawing sheet thumbnail next to the existing photo thumbnail, which provides the stamp annotation on the drawing sheet to which the punch list item is linked. This allows the user to quickly locate where the punch list item originated.

NOTE: This feature was released in Patch 15-2.

How Does it Work?

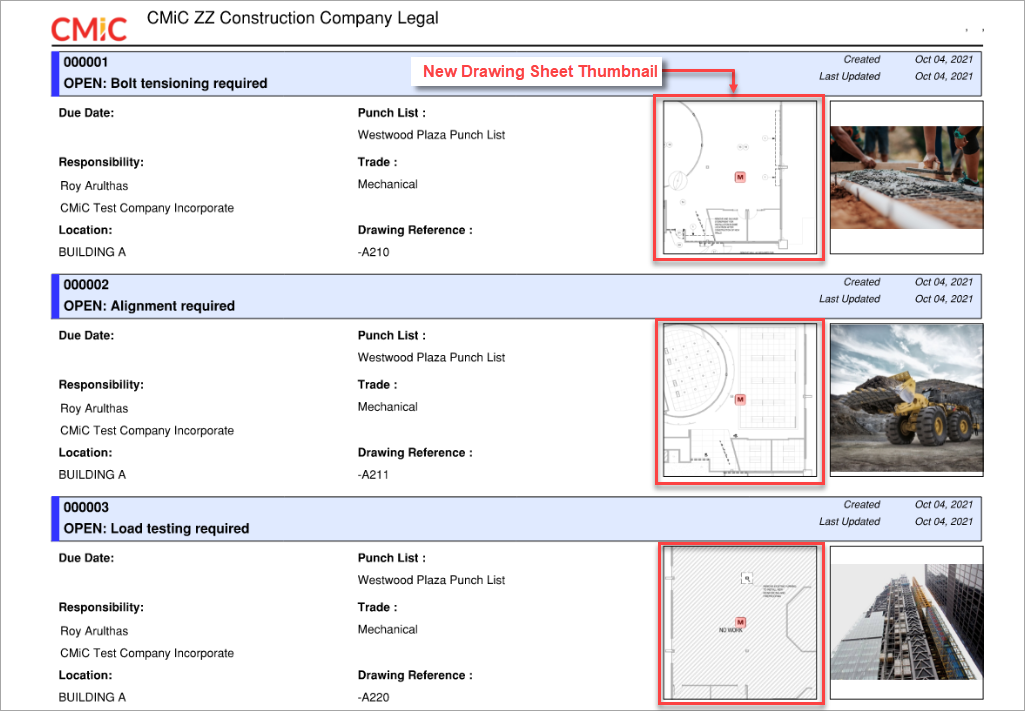

Sample Punch List Report Showing New Drawing Sheet Thumbnail Next to the Photo Thumbnail

Now when printing a Punch List Report, if a punch list item is linked to a drawing sheet, the report will display a drawing sheet thumbnail, showing the stamp annotation where the punch list item originated.

To learn more about generating this report, refer to CMiC Field - Punch List Items Report.
