CMiC has added a Jobs log to the Drawing Upload screen. This will allow users to view current extraction/linking jobs for the selected project.
NOTE: This feature was released in Patch 14-2.
How Does it Work?
Drawing Management; standard Treeview path: CMiC Field > Document Management > Drawing Upload

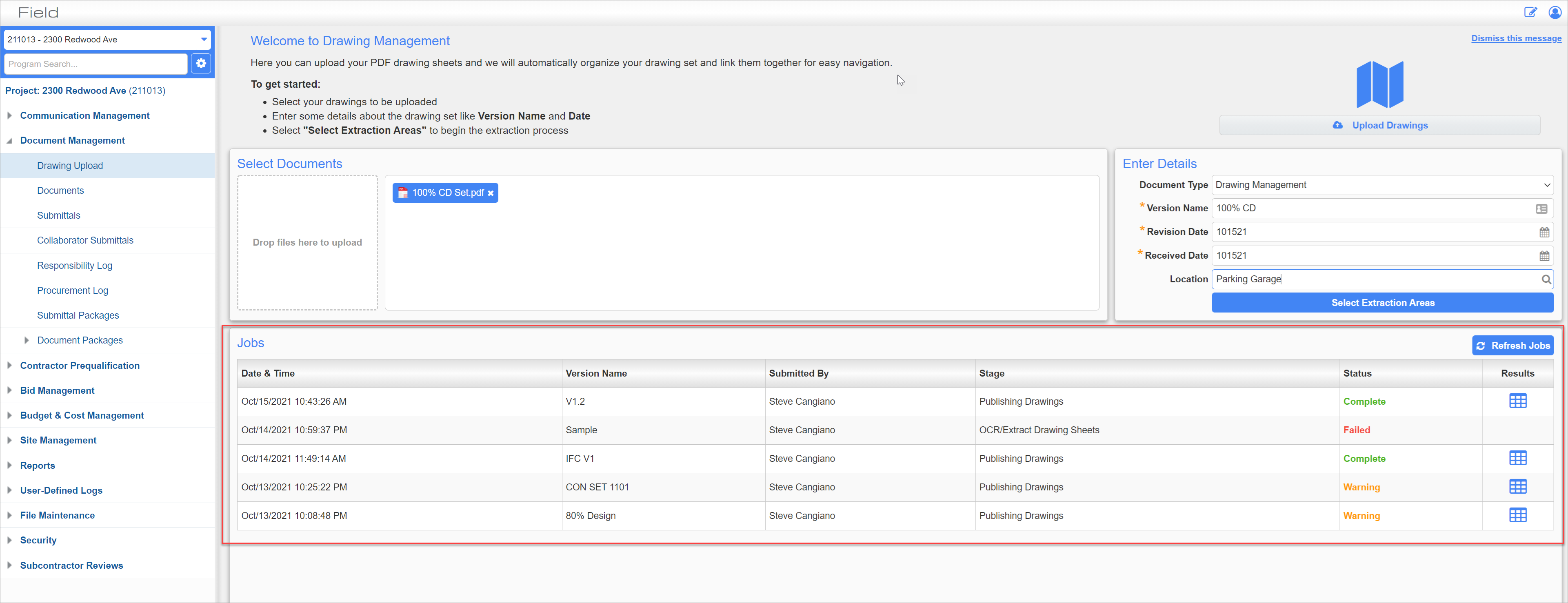

The Drawing Upload screen contains a new section for a Jobs log. The Jobs log displays all extraction and link generation jobs that are in progress, completed, queued, or failed - for the current project.
Stage
The Stage column displays the current stage of the job's process. The process is broken down into the following stages:
-
Drawing OCR/Extraction – This is the core process that splits the drawing set into individual sheets and OCRs the Sheet Number and Title.
-
Generating Hyperlinks – This process scans the drawing set and inserts hyperlinks for all detail/elevation callouts.
-
Publishing Drawings – This process takes the extracted drawing sheets and loads them into your project.
Status
The Status column displays the current status of the job. The following statuses may be displayed:
-
Complete – Indicates that the job has been completed.
-
Queued – Indicates that the job has been submitted to quartz but not started.
-
In Progress – Indicates that the job is in progress.
-
Warning - Indicates that the core extraction process completed but secondary actions like sending a confirmation email has failed. You should contact your CMiC Admin to review the Job Scheduler log for more details.
-
Failed – This status indicates that the core extraction process failed. You should contact your CMiC Admin to review the Job Scheduler log for more details.
Results
A Drill-down icon (
) exists in the Results column for jobs that have been completed but not yet published. The drill-down launches a window to display the extraction results.
