Copy Equipment

Why is it Useful?

CMiC has added the ability to copy equipment on the Equipment Maintenance screen. This new feature will allow users to easily create new equipment pieces when they already hold the same type of equipment within their inventory.

NOTE: This feature was released in Patch 14-1 under Issue 20.34147.

How Does it Work?

Pgm: EMEQUIP – Equipment Maintenance; standard Treeview path: Equipment Costing > Setup > Enter Equipment

Click on the [Copy Equipment] button on the Enter Equipment screen in the Equipment Costing module.

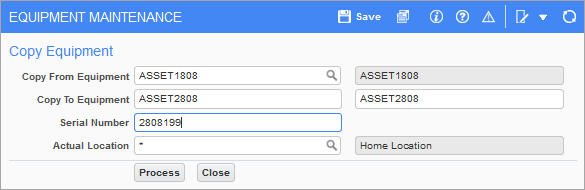

Pop-up window launched from [Copy Equipment] button on the Equipment Maintenance screen

A pop-up window will be launched where details about the piece of equipment being copied can be entered.

Copy From Equipment

Enter/select the equipment code which is to be copied. The equipment from which the [Copy Equipment] button is clicked will default in this field. The equipment code must be in uppercase.

Copy To Equipment

Enter the new equipment code and equipment name.

Serial Number

Enter the unique serial number for the equipment.

Actual Location

Enter/select the actual location of the equipment.

[Process] - Button

When finished entering the details for the new equipment, click on [Process].
