Construct ESS - Login Screen

Enterprise Customer Login

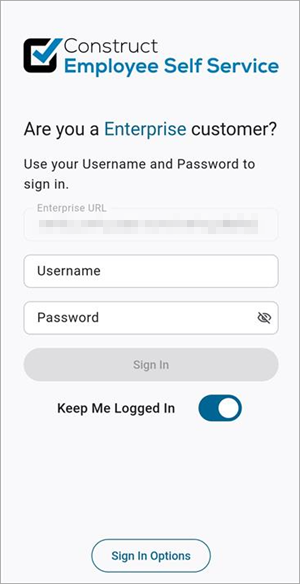

Construct ESS Login Screen for Enterprise Users

This is the first screen that appears upon opening the Construct ESS app.

Users must enter a mobile URL and then click on [Next].

Next, users must enter a username and password before pressing the [Sign In] button to access the app.

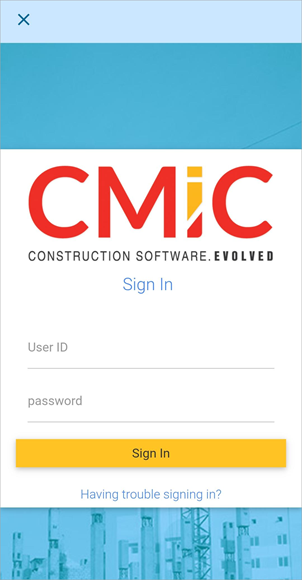

If the Enterprise customer uses Web SSO, once the URL is entered in the first screen, the screenshot above will be displayed.

OAuth Settings

OAuth Settings screen launched from Open OAuth Settings link

The Open OAuth Settings link on the Enterprise Login screen launches the OAuth Settings screen for customers without MDM set up to enter OAuth values for logging in. These additional values are only applicable if the Enterprise URL points to an OAuth Server.

Scan QR Code

The Scan QR Code link on the Enterprise Login screen allows users to scan a QR code that will configure the app with OAuth values, including the Enterprise URL. Users can verify the OAuth values using the Open OAuth Setting link.

Cloud Customer Login

Construct ESS Login Screen for Cloud Customers

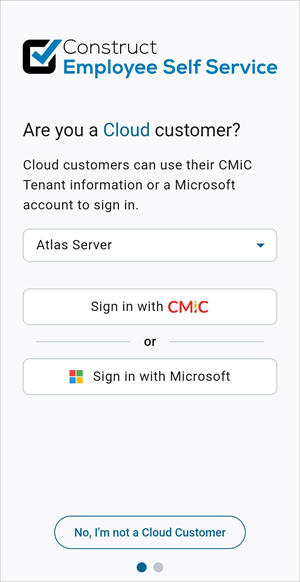

Cloud customers must press the [Sign In Options] button and then press the [No, I'm not an Enterprise Customer] button to open the Login screen shown above.

If the Cloud customer doesn't use SSO, they should press [Sign in with CMiC].

Users must log in with their username and password, as well as a tenant ID. They have the option of logging into Cloud Atlas or Cloud Nova. Cloud Atlas is selected by default.

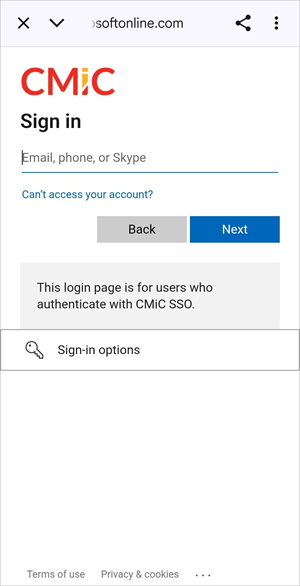

If the Cloud customer uses SSO, then they should press [Sign in with Microsoft] and the screenshot above will be displayed.
