WebLogic Setup in R12

Overview

This article provides detailed instructions for updating your WLS Java and keystore in R12.

Procedure

Change Keystore in WebLogic

The keystore is a regular Java certificate keystore which can be created using JDK utilities.

Log into Oracle’s WebLogic Server.

In the WebLogic Server’s Administration Console, perform the following steps:

  • In the Change Centre panel of the console, click on the [Lock & Edit] button.

  • In the Domain Structure panel of the console, click on the (+) icon beside the Environment node to expand it, and then select the “Servers” menu option that appears underneath.

  • In the Configuration tab of the Summary of Servers panel of the console, click on the server link in the Name field to open the settings for this server.

  • Click on the Keystores tab.

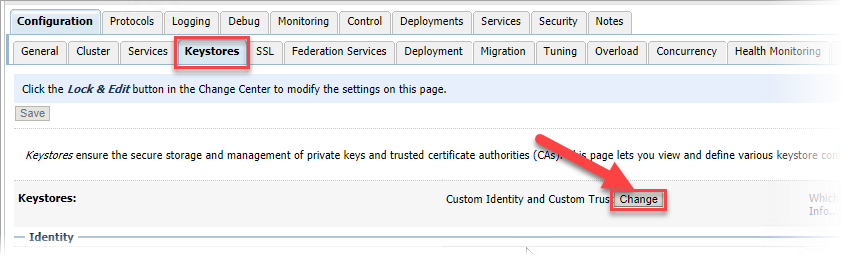

  • In the Keystores field in the Keystores tab, click on the [Change] button and select “Custom Identity and Java Standard Trust” from the drop-down menu to change the keystore.

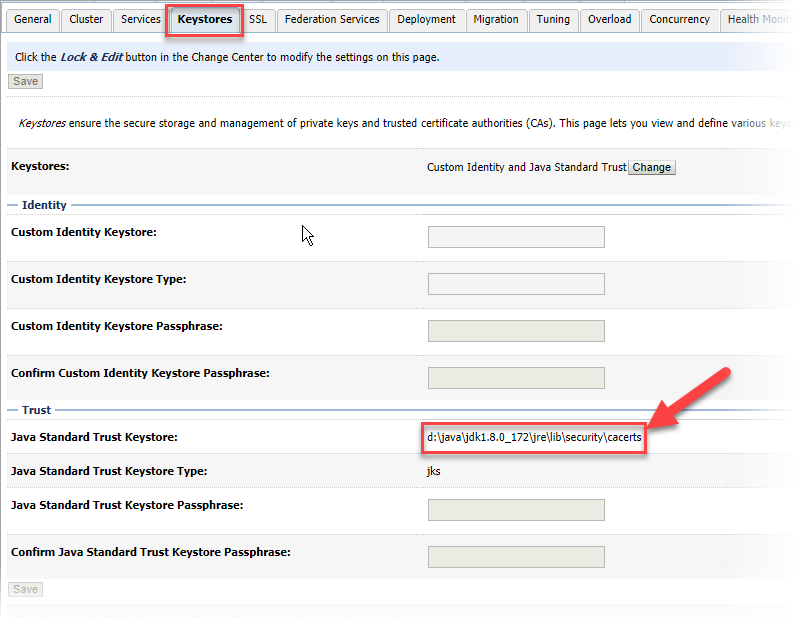

  • The entry in the Java Standard Trust Keystore field should be similar to the one in the screenshot below. JDK might not be 1.8.0_172 but it should be similar.

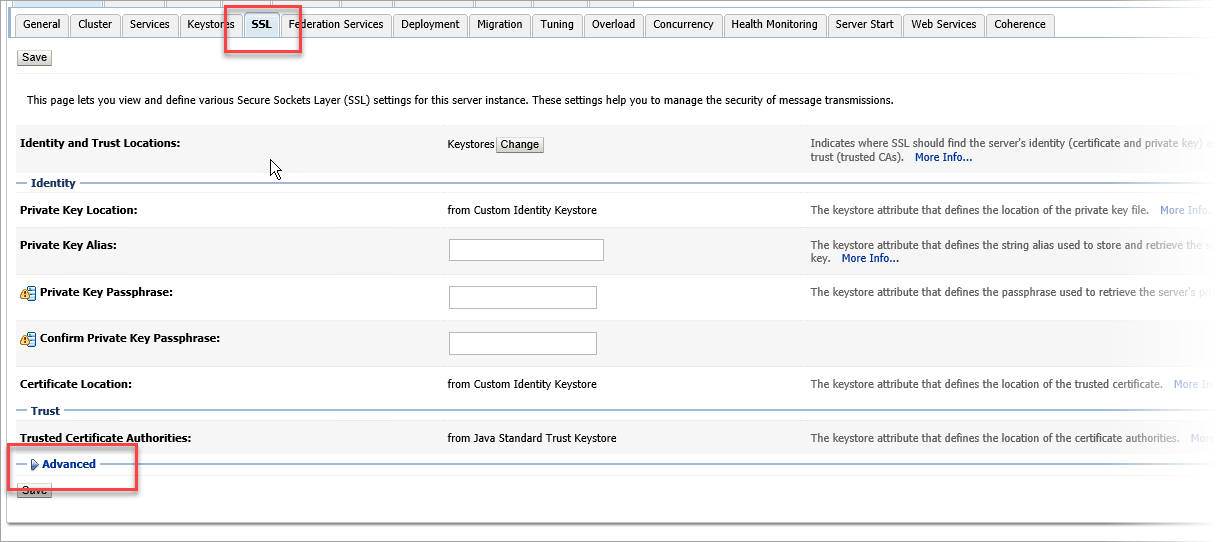

  • Click on the SSL tab to change the host verifier and JSSE SSL. Both these items are located in the Advanced settings section of the screen.

  • Click on Advanced link to open more advanced settings on this screen.

  • In the Host Verification field select “None” from the drop-down menu.

  • Check the ‘Use JSSE SSL’ checkbox (not shown in the screenshot).

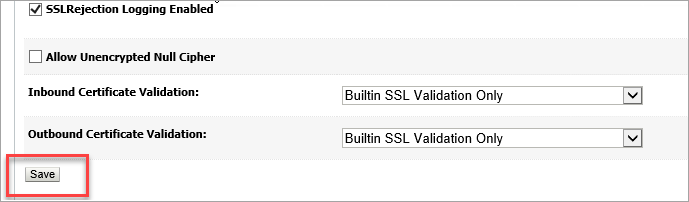

  • Click on the [Save] button to save the configuration.

  • In the Change Center panel of the screen, click on the [Activate Changes] button.

SSL Debugging

If SSL in WebLogic does not work, the first step is to enable SSL debugging. After enabling the debugging, a restart of WebLogic is required. Once that is done, attempt the SSL connection and review the logs for any error messages.

To enable debugging, add these 2 parameters to the

<HOME>\user_projects\domains\cmicENV\bin\startWebLogic.cmd

-Dssl.debug=true -Dweblogic.StdoutDebugEnabled=true

For example:

BEFORE

set MEM_ARGS=-Xms8G -Xmx12G -Xrs -XX:CompileThreshold=8000 -XX:PermSize=128m -XX:MaxPermSize=4G

AFTER

set MEM_ARGS=-Xms8G -Xmx12G -Xrs -XX:CompileThreshold=8000 -XX:PermSize=128m -XX:MaxPermSize=4G -Dssl.debug=true -Dweblogic.StdoutDebugEnabled=true
